Build Your Ultimate Lifting Station

The Riot Modular Rack Range is your gateway to a personalized training experience in powerlifting and strength sports. The 75mm x 75mm sturdy base components are perfect for commercial gyms or your own private dungeon. With a selection of separate components like uprights, crossbeams, spotter arms, various pull-up solutions and many more, you can create a training station that aligns perfectly with your strength training ambitions.

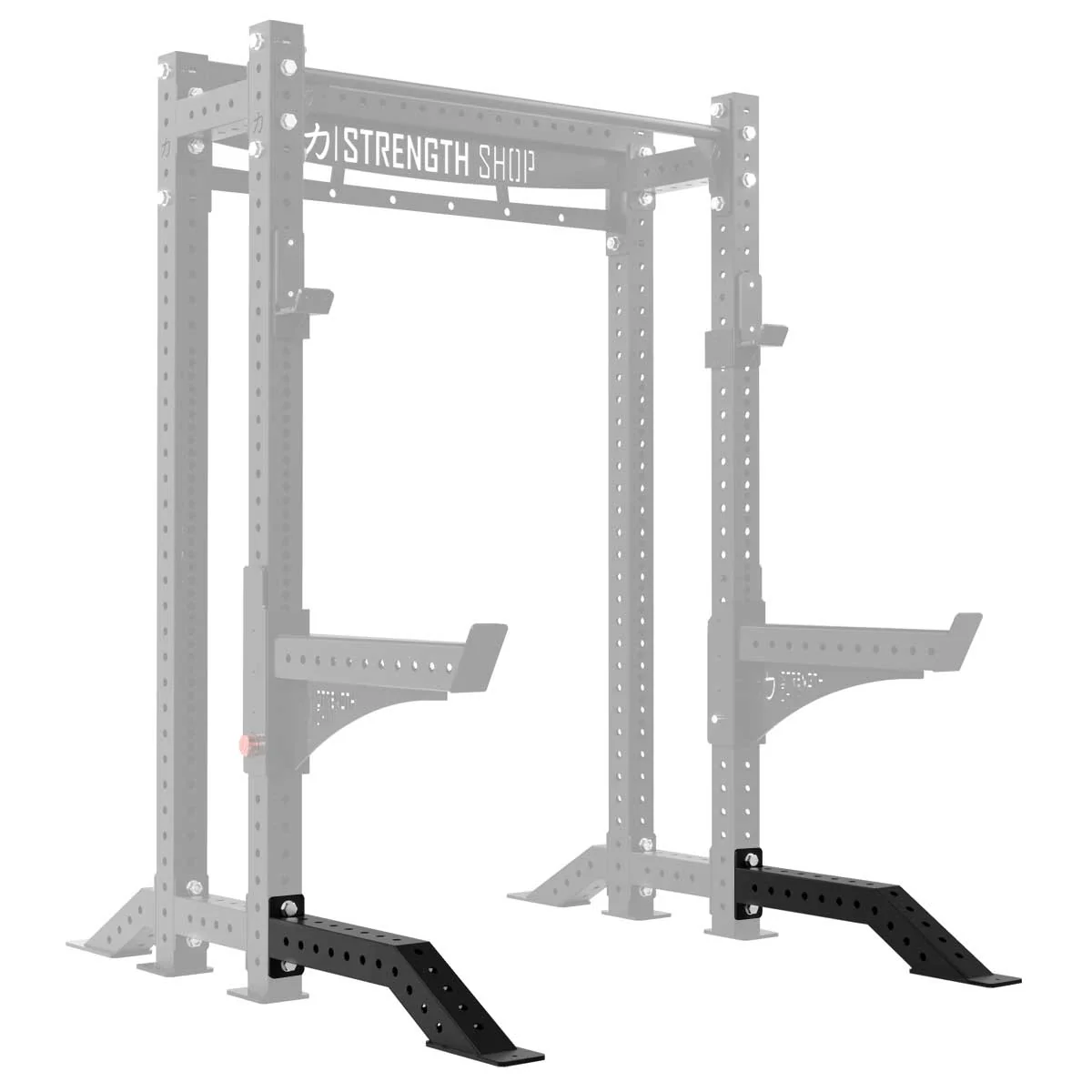

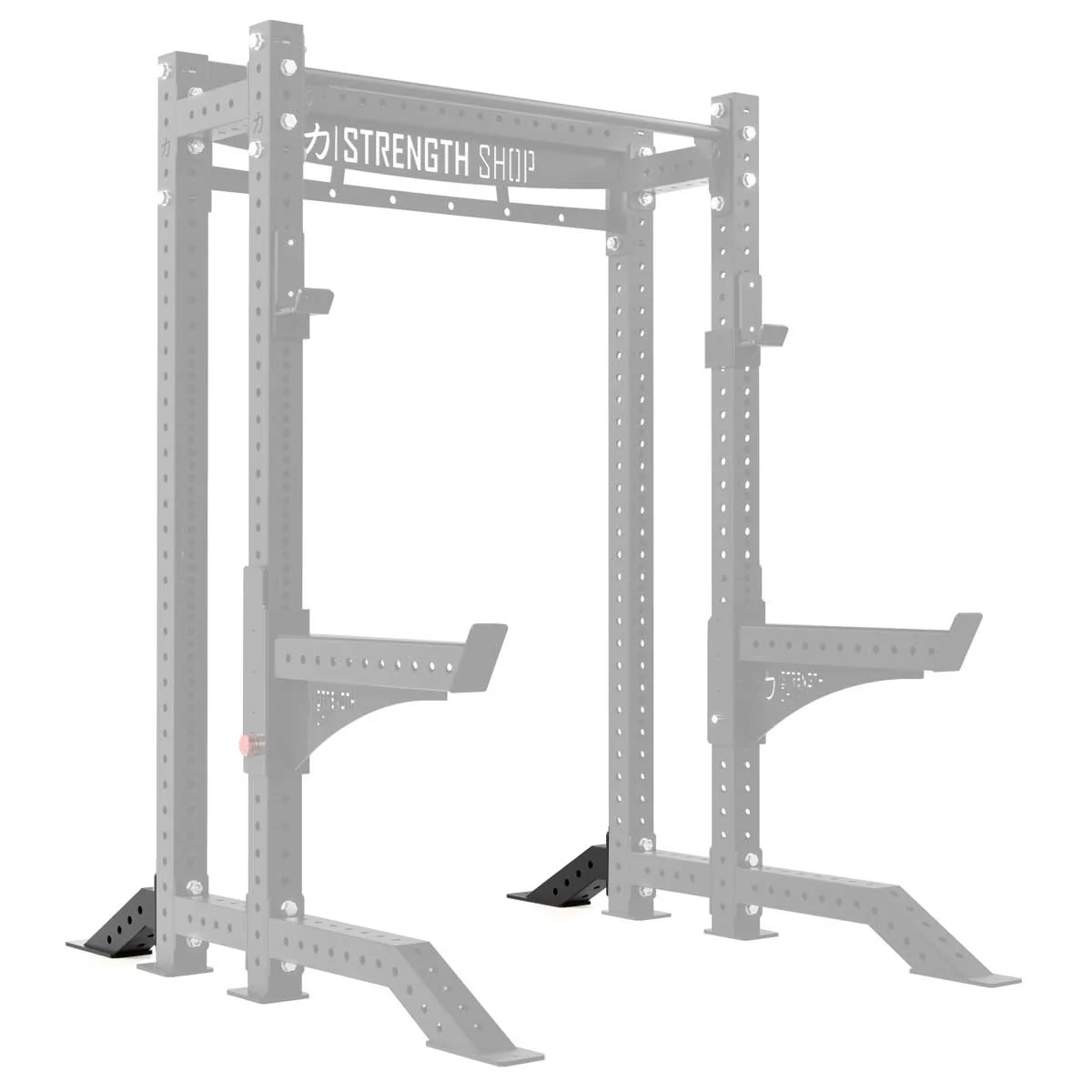

→ Add stability to your rack variation, by adding additional short or long feet. Consider this option if your set up is not bolted into the floor, so it won’t tip over.

Specs

• Material: 75mm x 75mm square tube, 3mm wall thickness
• Finish: black powder-coated
• Compatibility: only with Riot and Rig series
• 17mm holes, 50mm centre-to-centre spacing, front and back only
• Sold as a pair

Details of the floor plate:

• 215 x 95 x 8mm
• 1x 10mm hole for bolting to floor

Details of the end plate:

• 150 x 75 x 6mm
• 2x 17mm holes, space 100m centre-to-centre

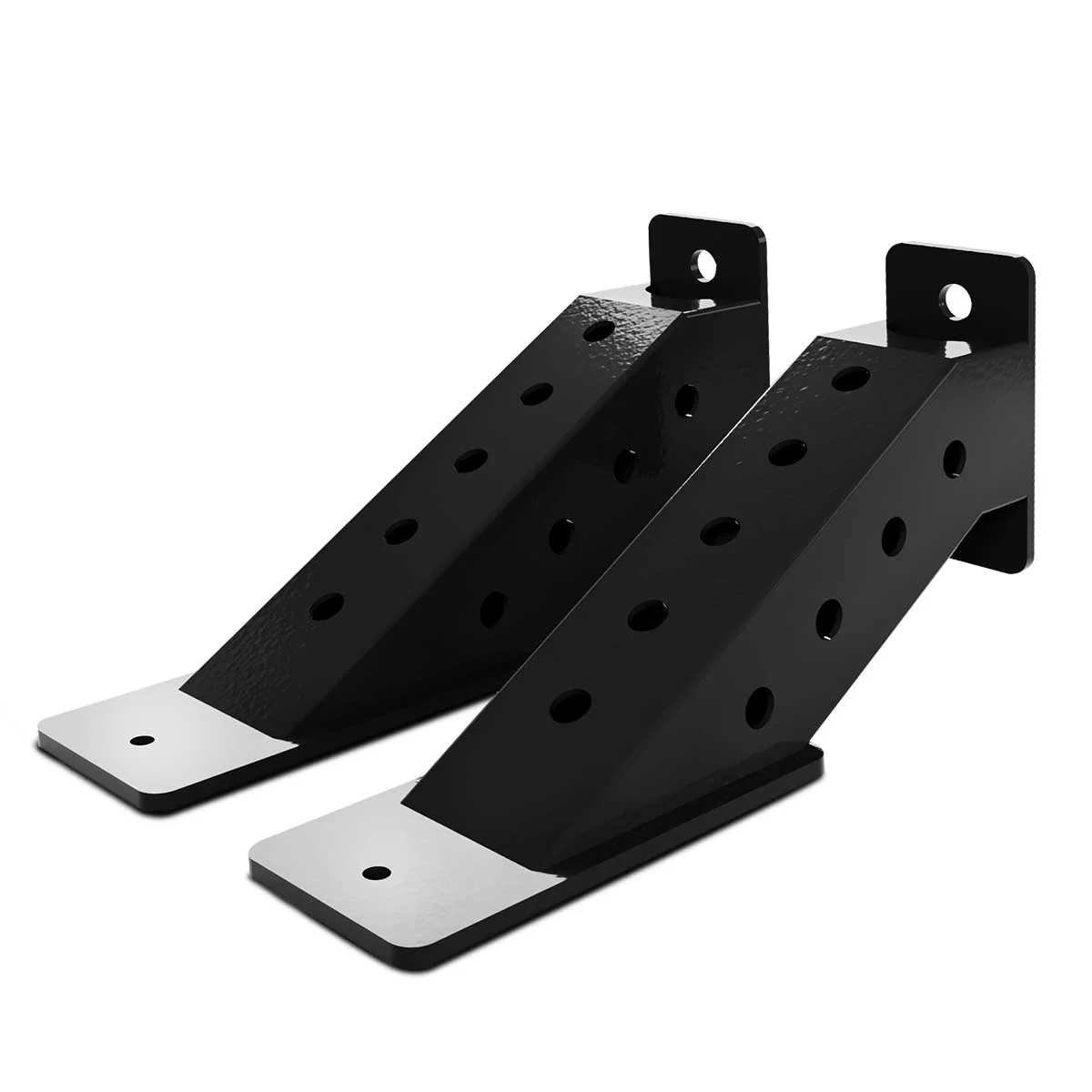

Dimensions of individual foot (LxHxD / mm):

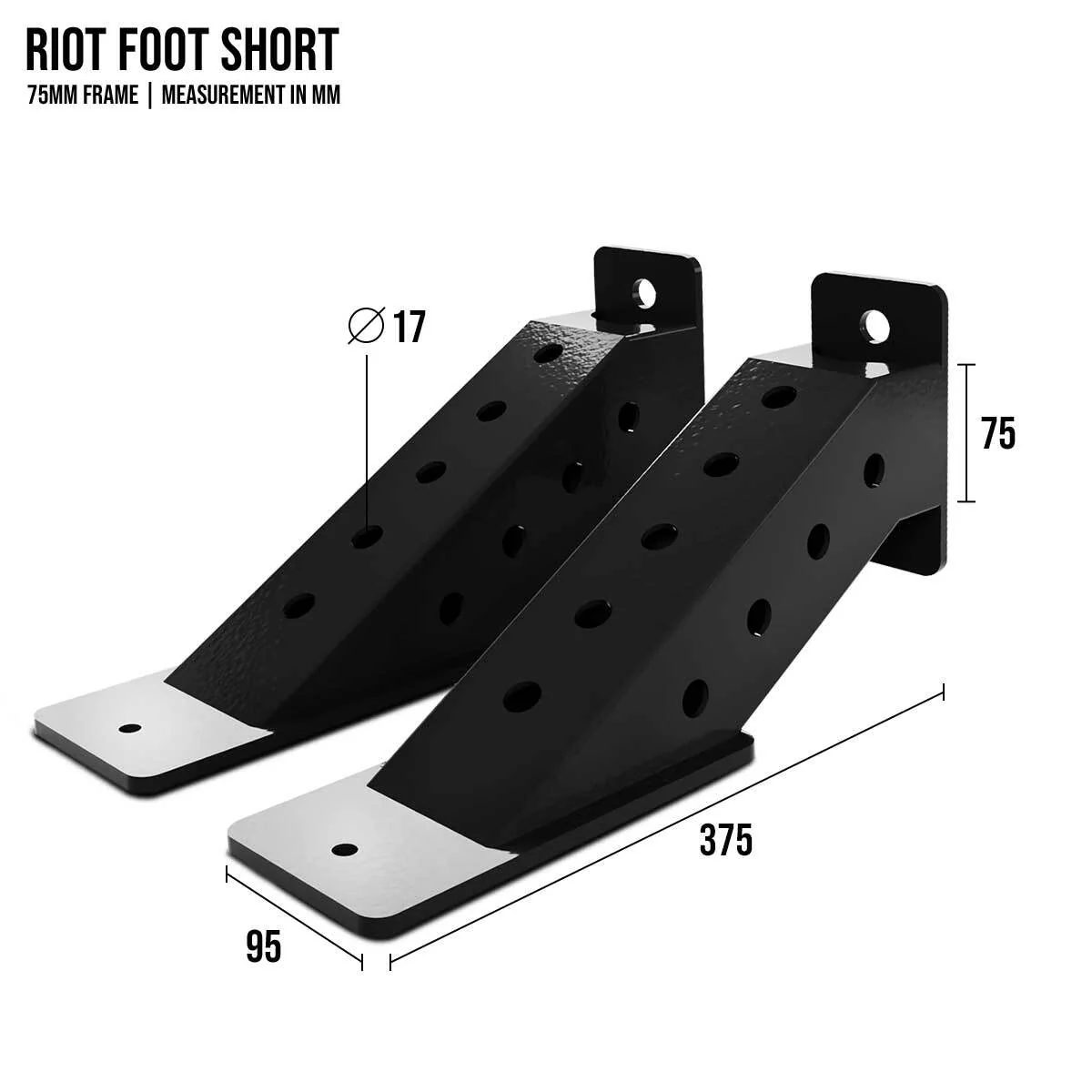

• Riot Foot Short: 725 x 190 x 95
• Riot Foot Short: 375 x 190 x 95
